Introduction

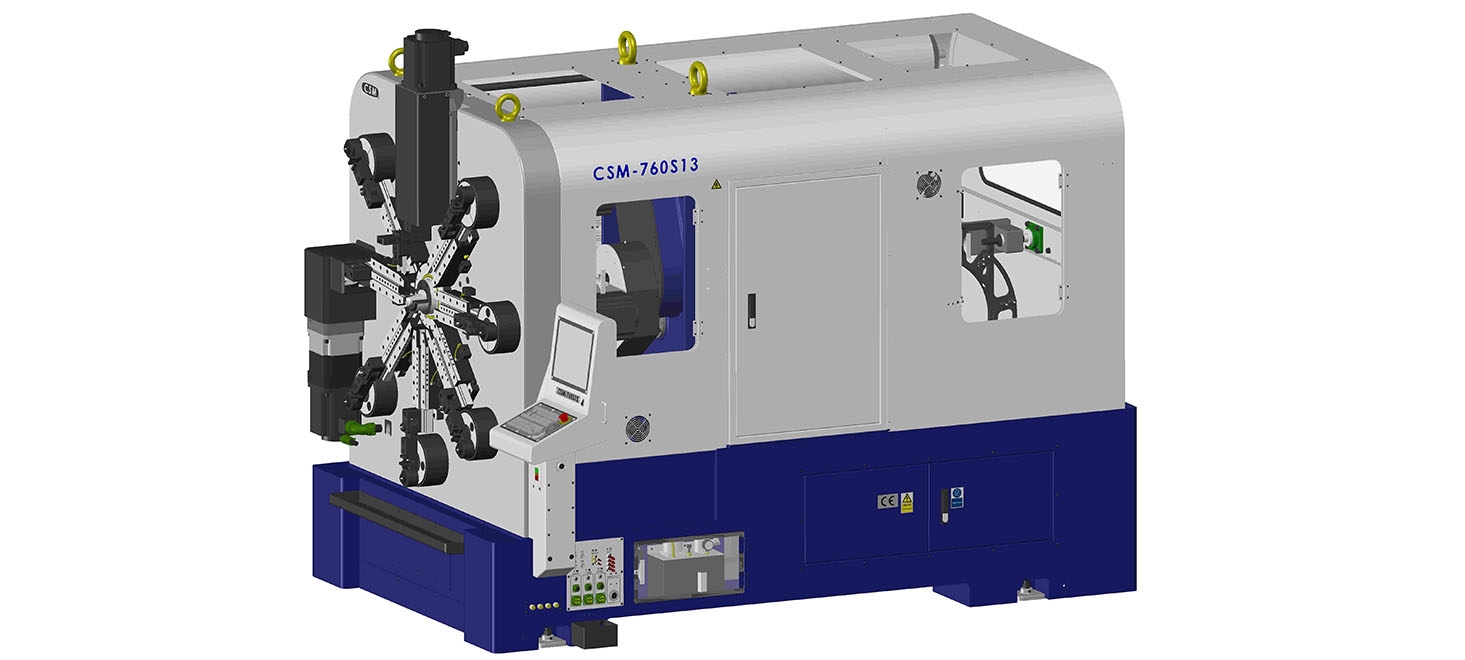

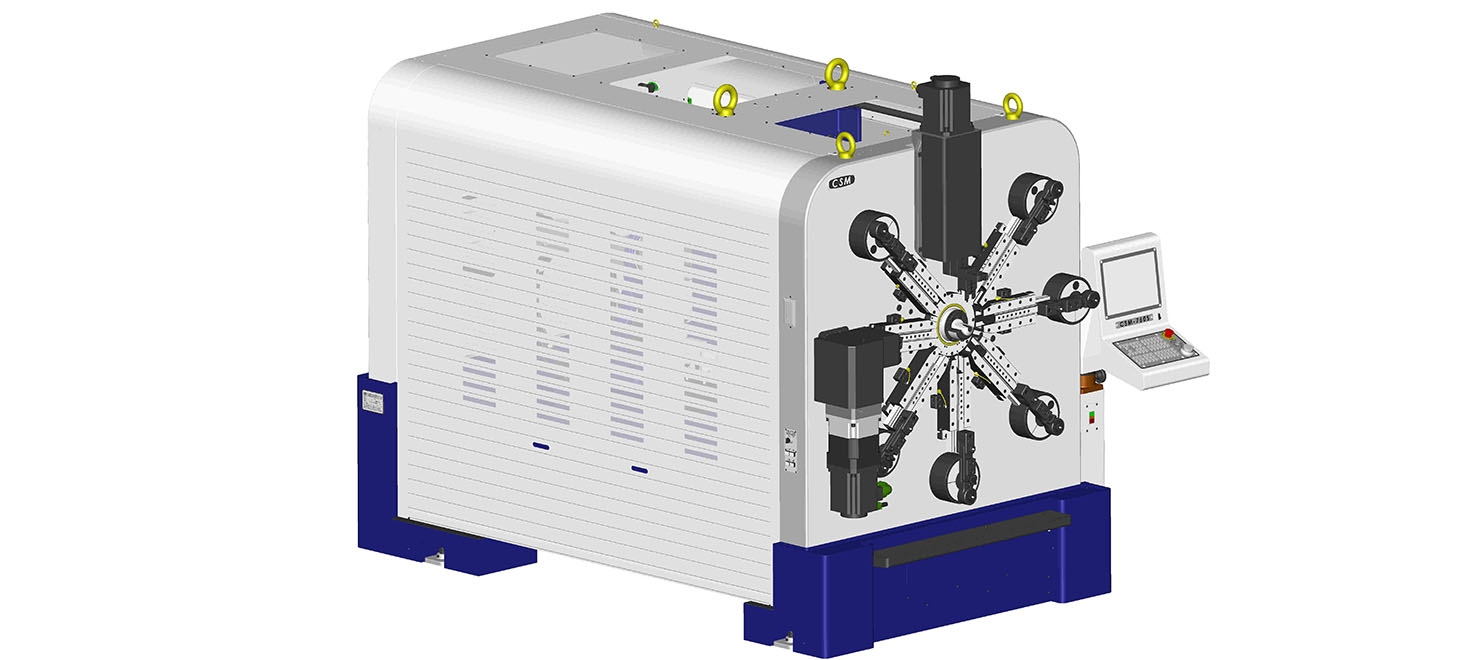

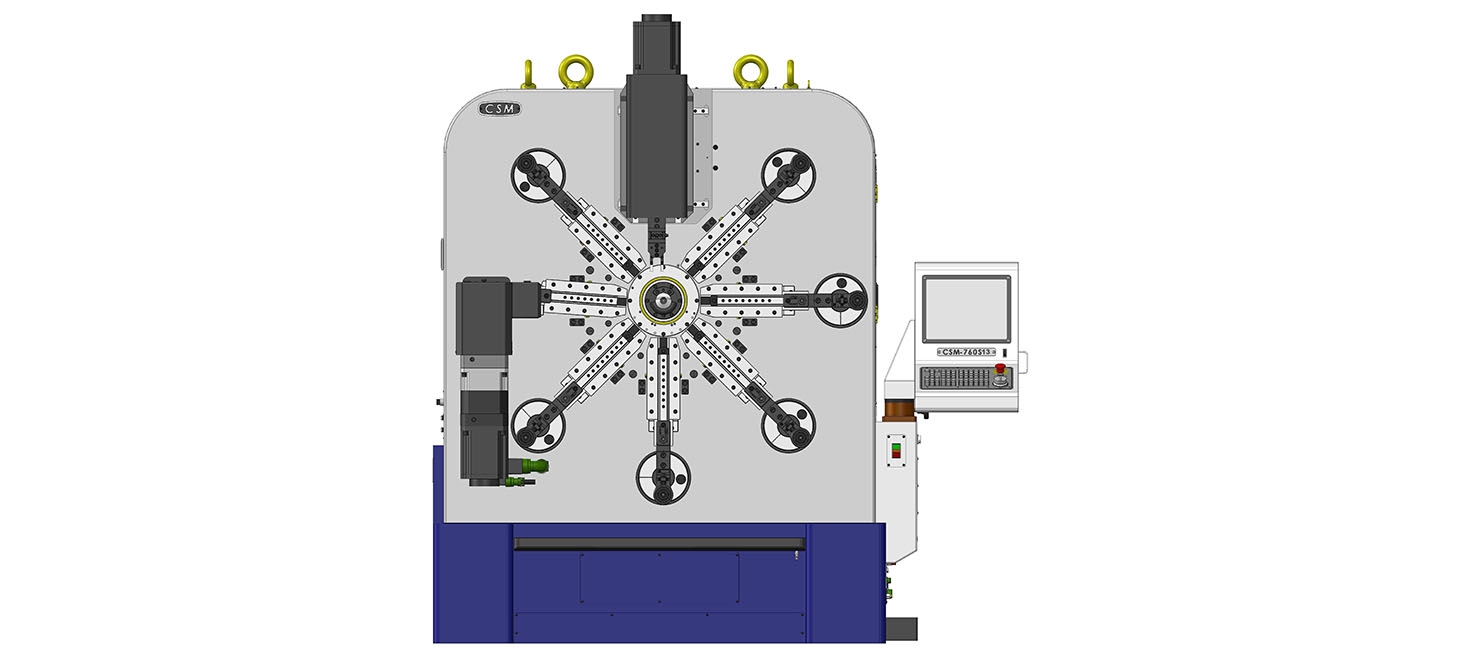

CSM-760S13 includes all advantages from present machines. The long term Production, operation and maintaining easily are the most important issues to Our improvement.
Feature
We developed a brilliant lubricant circulation system helps prevent oil leaking,And the Clean-Body design allows you to keep the bottom part of the machine Clear easily. Furthermore, the new design wire feeding and transmission devices Allow for easily assembling and maintaining.
Best efforts for you are the air conditioned cooling system and the Dust-Isolated Circulation will keep the best performance for the electronic system.
We enhanced our machine structure to sustain high accuracy for long term Production.
|
Model |
CSM-760S13 |
|
|
Wire capacity |
Steel wire: 2.5 - 6.0 mm |
|
|
Max. Leg length |
110 mm |
|
|
Max. OD |
100 mm |
|
|
Slide axis |
R2AA18550 |
5.5 kw- 1 axis |
| R2AA18750 | 7.5 kw- 7 axes | |
|
Forming (E) axis |
R2AA13180 |
1.8 kw- 1 axis |
| Feed axis |
R2AA2211K |
11 kw- 1 axis |
|
Max. speed |
(90 M/min) |
|
|
Quill axis |
P60B08120 |
1.2 kw- 1 axis |
|
Rotary wire axis |
R2AA18750 |
7.5 kw- 1 axis |
|
Computer |
Axis Number |
Default 12, Max. 14 |
|
Slide Stroke |
126mm | |
|
Power |
|
220V, 3P, 50/60Hz |
|
Machine dimension |
2300(W)x3300(L)x2500(H) mm |
|
|
Machine Weight |
6000 kgs |
|
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
