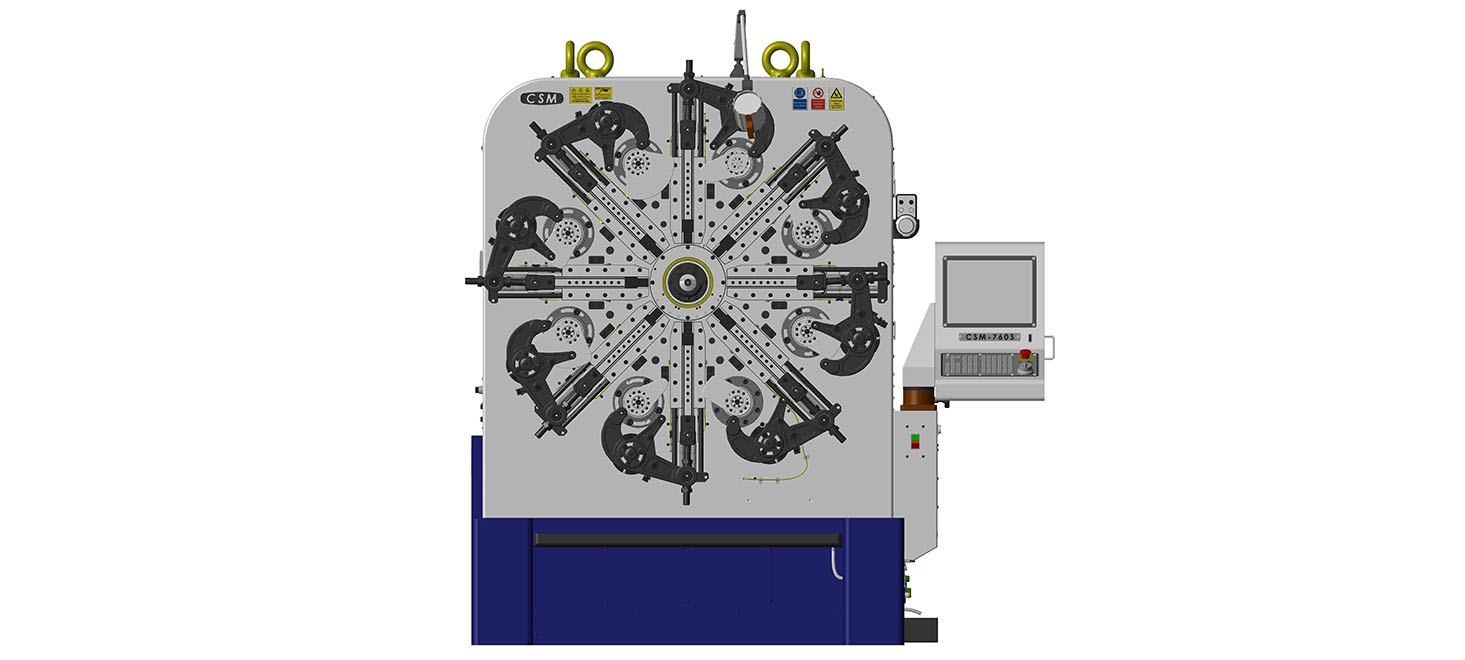

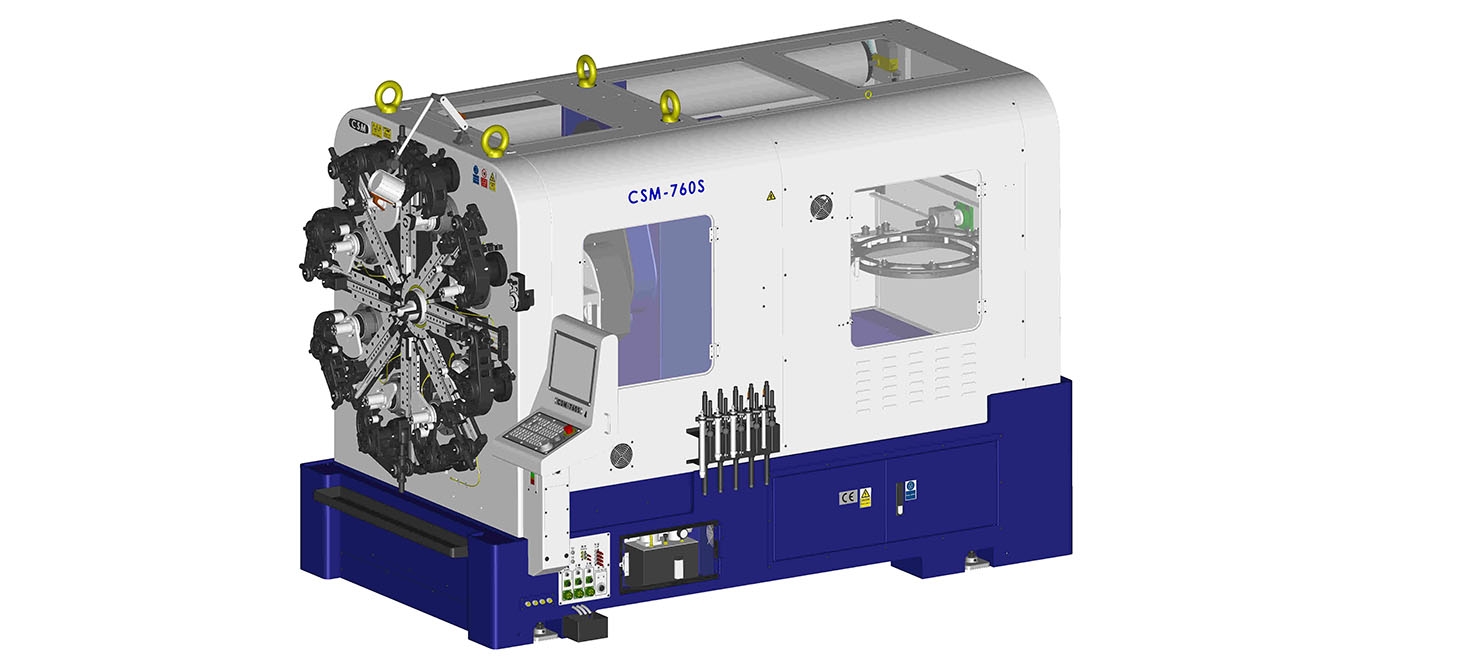

CSM-760S

Introduction
CSM-760S includes several advantages from present machines, and It is designed for long term production. Easy operating and maintaining.

Feature
CSM developed a brilliant lubricant circulation system. Which helps prevent Oil leaking, and the Clean-Body design allows you to keep the bottom part Of the machine clear easily. Furthermore, the new desing wire feeding and Transmission devices allow for easily assembling and maintaining.

The Dust-Isolated circulation system will keep the best performance For the electronic system.

CSM enhanced the machine structure to sustain high accurany for long Term production.

Working Range Basic Wire Diameter 2.5mm~6.0mm
  Strip Size 1.0 × 50mm
Working Ability O.D. MAX 120mm
  Leg Length 100mm
  Slide Stroke 110mm
Forming Axis Min. Angle Value 1
  Max. Angle Value 4000
  Max. Rotation Value 75 RPM
Feeding Axis Min. Feeding Value 0.01mm
  Max. Feeding Value 99999.99 mm
  Max. Feeding Speed 95 M/min
Rotary Quill Axis Min. Angle Value 1
  Max. Angle Value 4000
Rotary Wire Axis Min. Angle Value 1
  Max. Angle Value 3600
  Max. Rotation Value 60 RPM
Spinner Min. Angle Value 1
  Max. Angle Value 36000
Control System Program Storage 5000 programs
  Number of Axes 4(6Max.)
Power Supply Power Supply 200/220 3ↀ 50/60Hz 4.5KVA
  Motor Capacity 11KW × 2、7.5KW×1.1.2KW×1、1KW×1
Machine Scale Dimension 2200(W)×2300(H)×3300(L)mm
  Weight 6400KG

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
