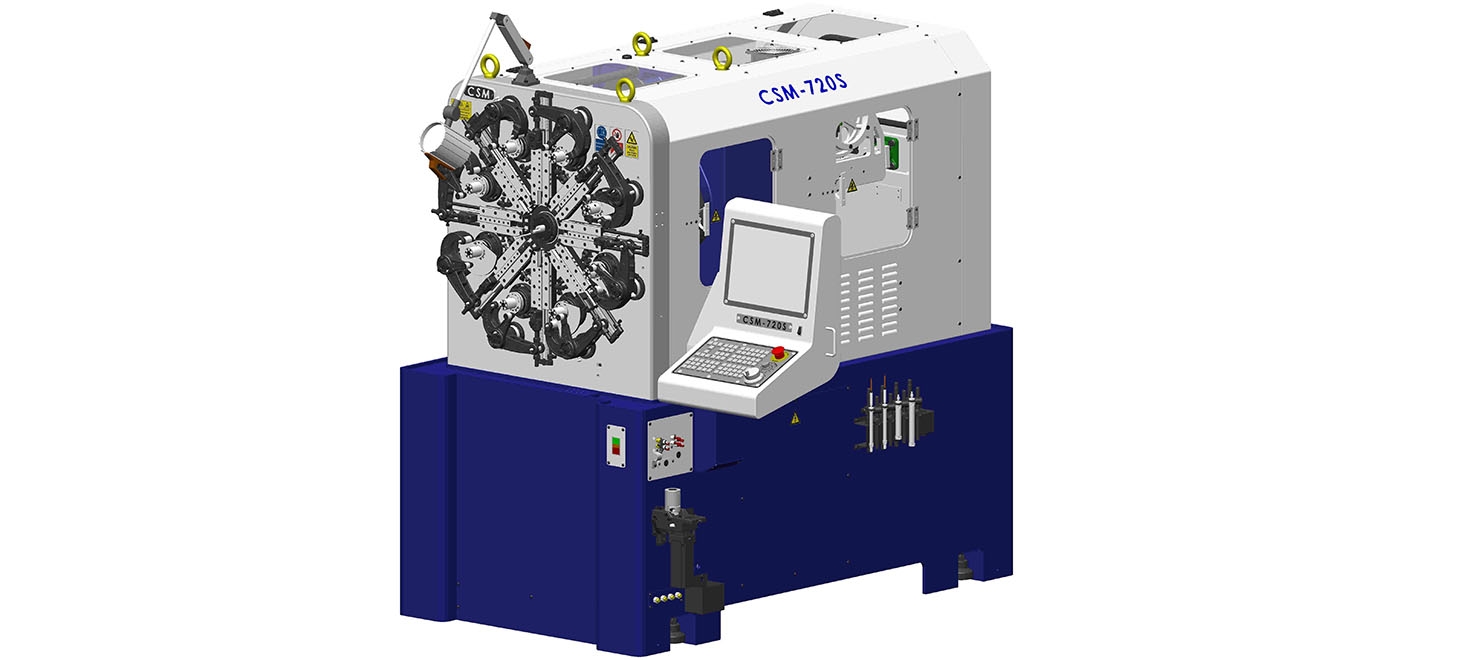

CSM-720S

Introduction
CSM-720S includes all advantages from present machines. The long term Production and user friendly is the most important issue for our improvement.

Feature
The most unique point is that we are not only improving but we Developed a brilliant lubricant circulation system to prevent oil leaking. The Clean-Body design allows you to keep it clear easily, and the newly designed wire feeding and transmission devices allow for easy assembly and maintenance.

Best effort for you is the Dust-Isolated circulation will Keep the best performance for the electronic system.

Material Basic Wire Diameter 0.2~2.3mm
  Rotary Wire Diameter 0.5~2.3mm
  Strip Size 1.0×12mm
Working Ability O.D. MAX 40mm
  Leg Length 60mm
Feeding Axis Min. Value per line 0.01mm
  Max. Value per line 99999.99
  Max. Speed 90M/min
Cam Axis Min. Angle Value 1
  Max. Angle Value 4000
  Max. Rotation Speed 90RPM
Rotary Quill Axis Min. Angle Value 1
  Max. Angle Value 4000
Rotary Wire Axis Min. Angle Value 1
  Max. Angle Value 3600
  Max. Rotation Value 60RPM
Computer Memory 5000 programs
  Axis Number 5
Power Power Supply 200/220,3ↀ 50/60HZ 4.5K VA
  Motor Capacity 3.5KW ×3 , 1.0KW × 1
Machine Dimension 2100 × 1500 × 1800 mm
  Weight 1653KG

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
We enhanced our machine structure to sustain high accuracy for long term production.
